Chemical Bond

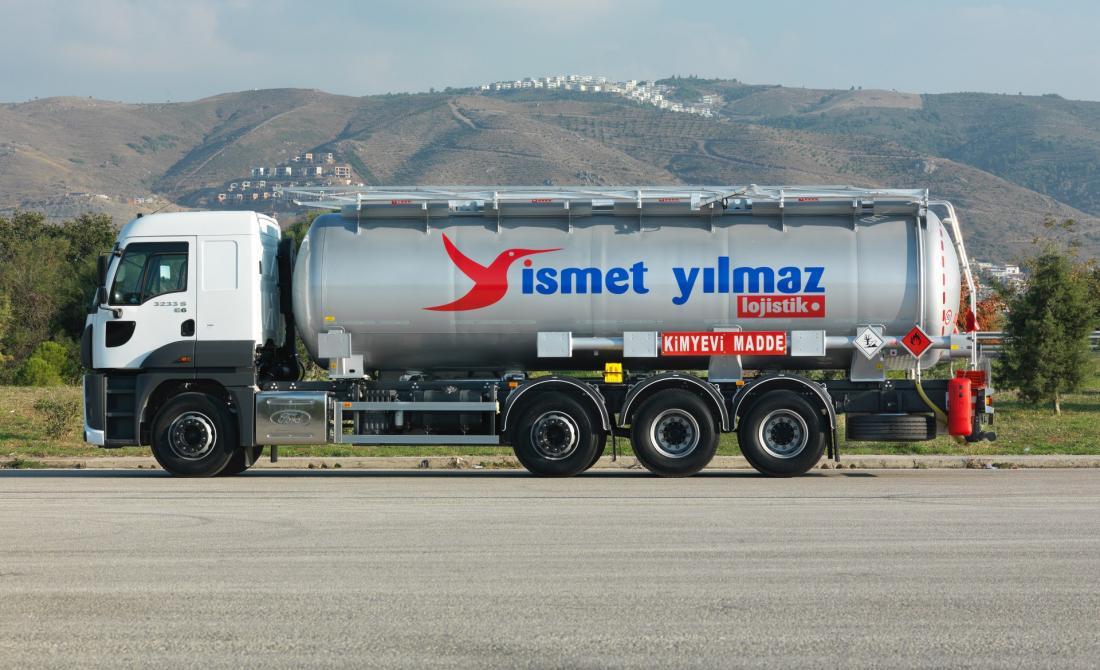

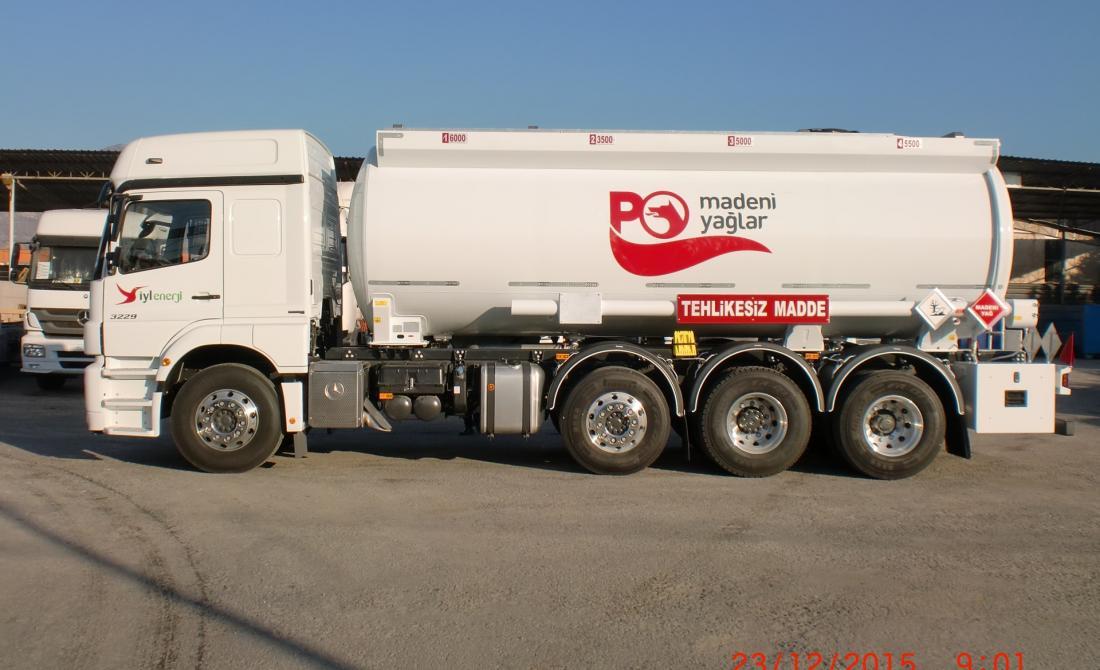

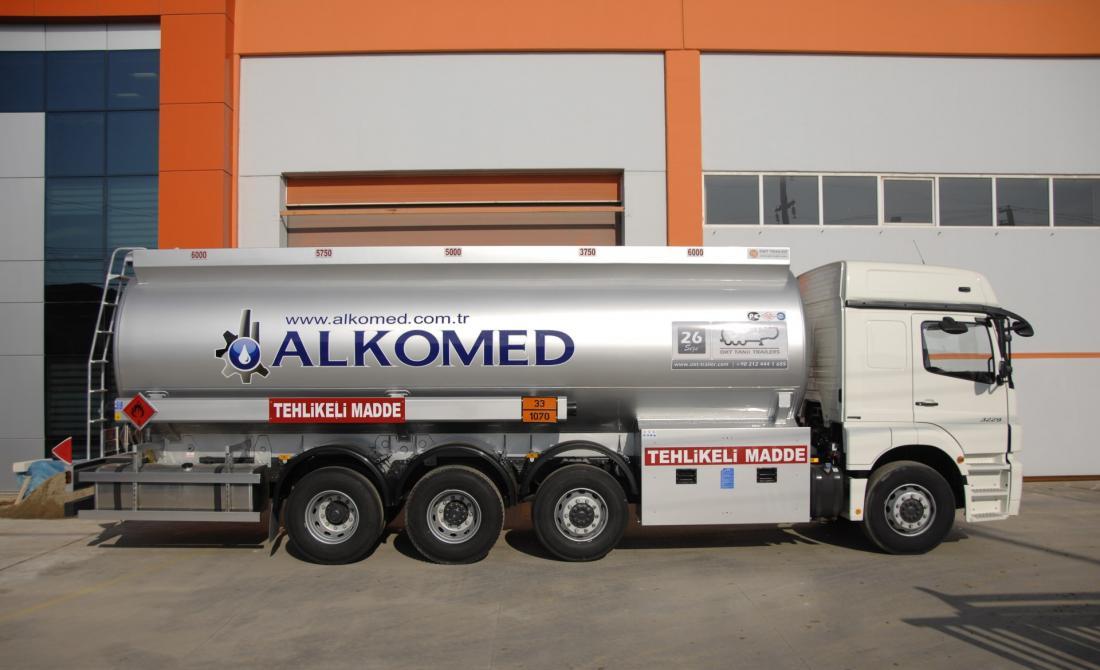

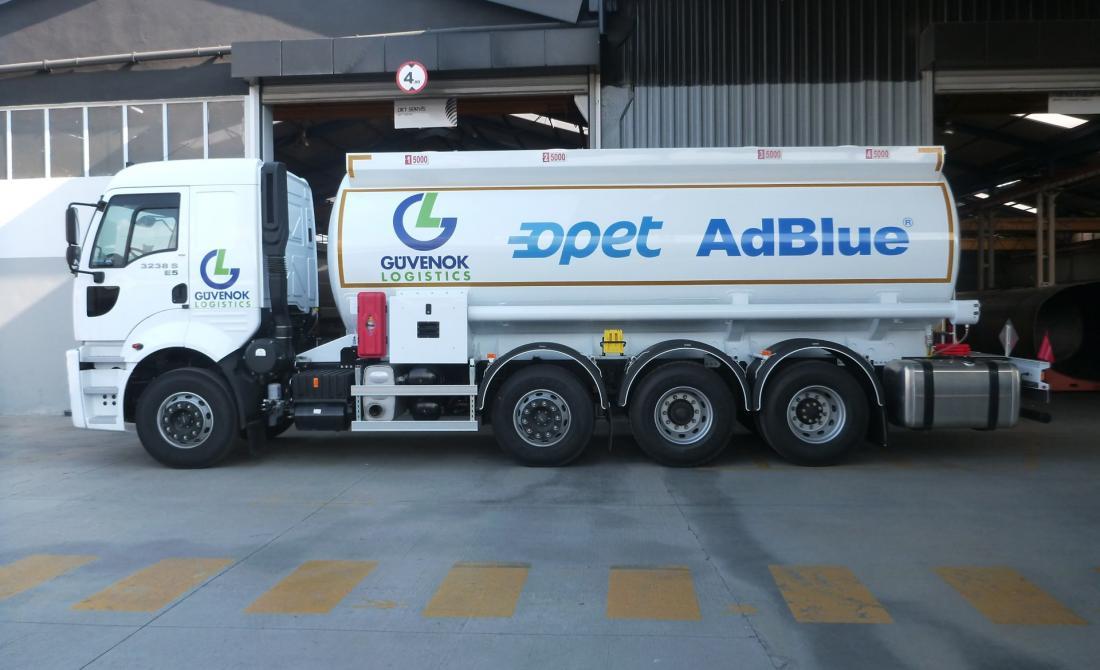

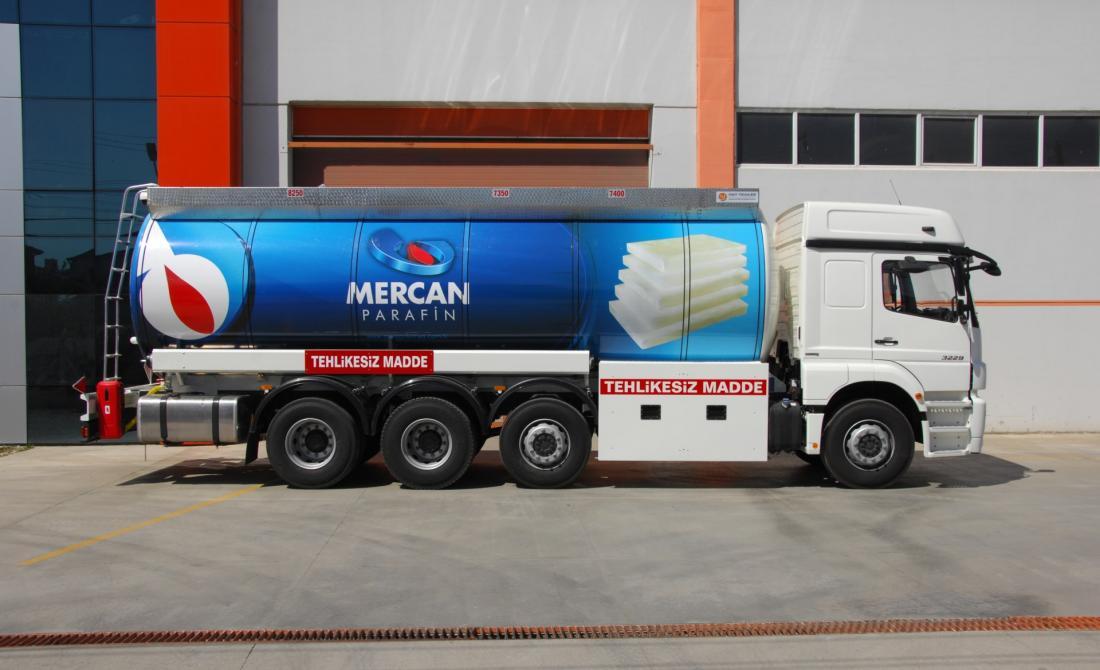

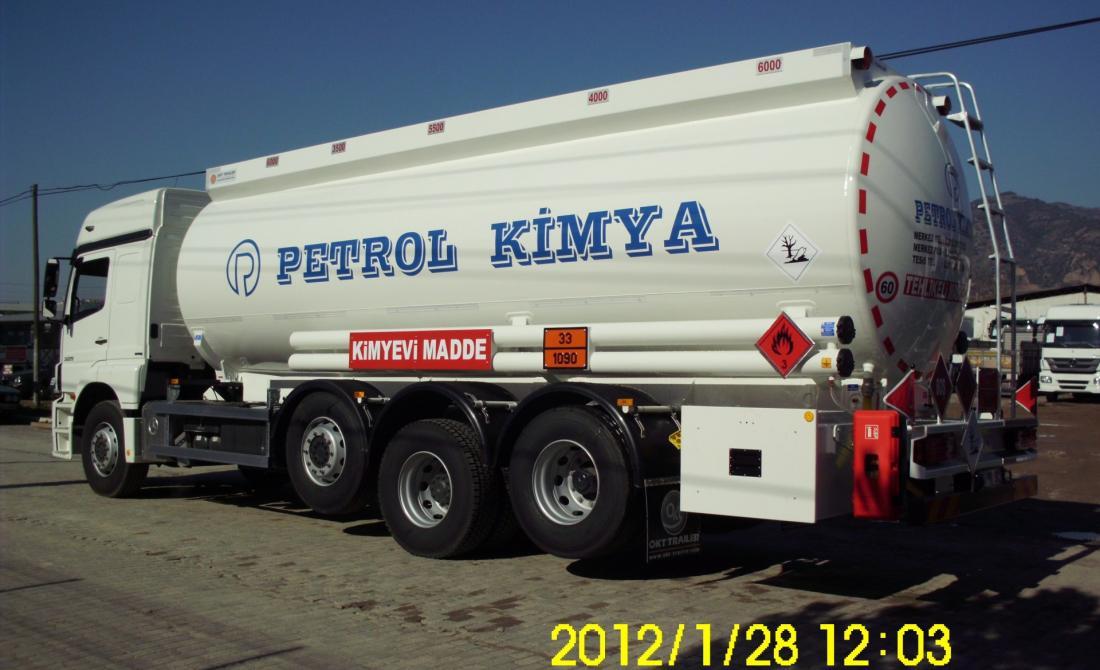

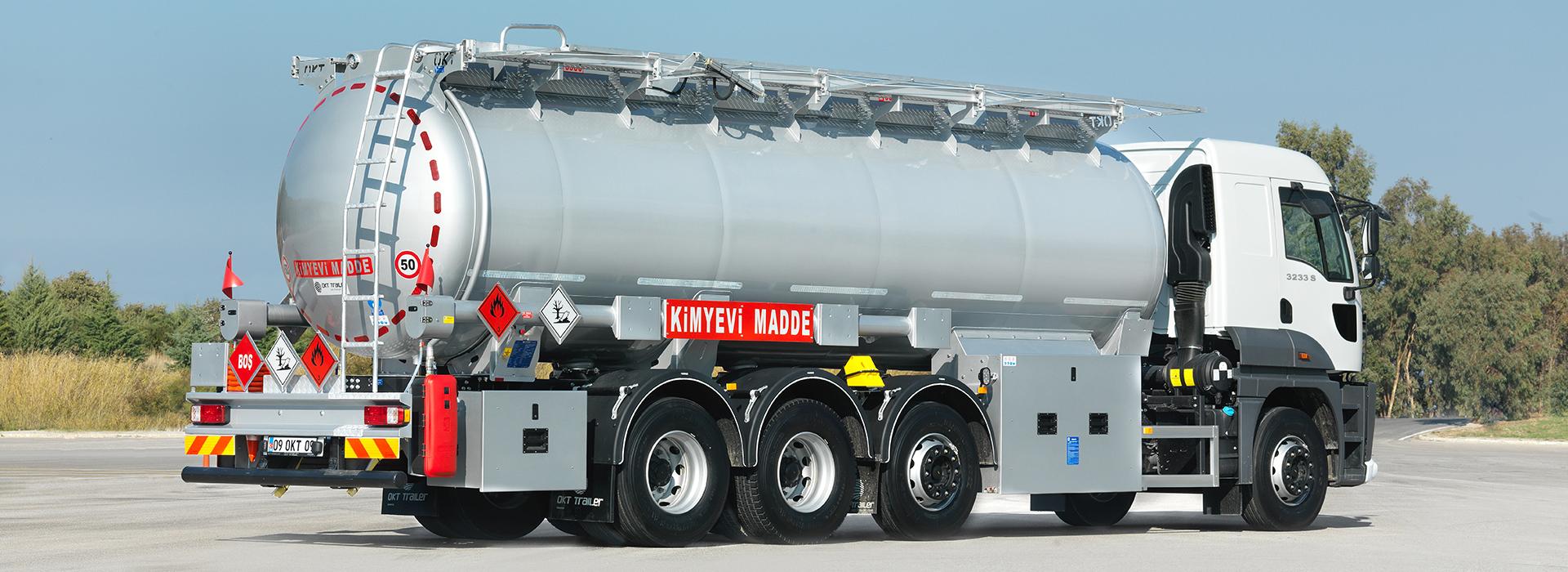

While adopting innovative and creative solutions tailored to the specific needs of our customers as the basic principle of flexible production understanding, with our own know-how licenses and the technologies we produce and according to the regulations of ADR - EN 14025-the geographical region to be served is made of stainless steel material which is based on to the climate and road conditions, in suitable thicknesses for design calculations, cylindrical section, wide volume range, UN-code dangerous substances in ADR Class-3-6-8 which can carry up to one or four chambers, capable of discharging the flow and powered, Over Truck Chemical Tanker; it forms a “Chemical Bond”, exactly in accordance with the superstructure instructions of truck manufacturers and truck chassis in different configurations.

12.000 ~ 25.000 Lt.

Volume Range

1 ~4

Number of Compartments

-20 ~ +50 °C

Design Temperature

1,5 Bar

Design Pressure

L1,5BN

Tank Code


Chemistry Different

Makes chemistry different by protecting the inner surface it touches with special passivation method.

Innovative Approach

It provides innovations to your business by providing solutions that meet current legislation and requirements for filling, transporting and discharging operations of chemical substances.

Modular Volume

Offers modular solutions for the truck chassis in different configurations with its wide volume alternative designs.

Performance Needs Source

Durable body structure together with superior production technology and premium equipment turns the long lifetime into profit.

OUTSTANDING FEATURES

Two sides and automatic opening guardrail
Provides ease of use, safety and automatically locks the brake system

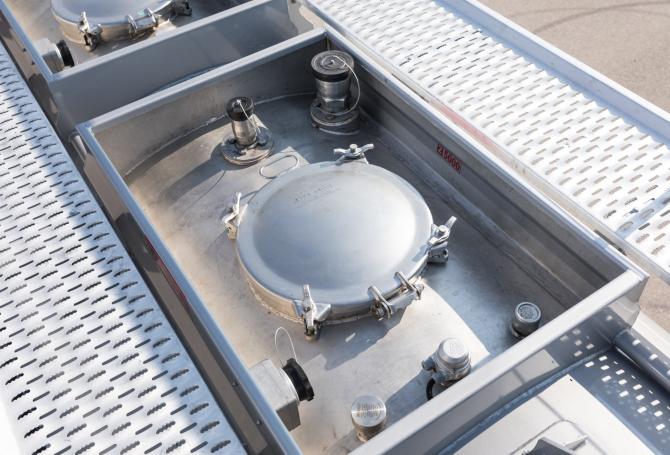

Spilltrays type top pool
Protect armatures against possible rollover and impact
Outputs opened by deep drawing method
At the bottom of the tank, it provides full discharge of the product
Armature cabinet cover (Bus type)
Provides mobility and ergonomic handling even in the narrow area
ADR Certificated Type Approved by TSE / Turkey Body
Provides full and secure supervision by national and international up-to-date legislative compliance and expert team
Transverse seamless monolithic plates in the body structure
The least number of (T) joints provide high strength and long life
The longest welding seam technology in weld joints
Safe, smooth surface and unique body structure
Seamless high performance robotic welding technology
Minimizes welding faults on the body due to tension and human factors and secures against impact
Homogeneous paint application with advanced technical equipment
Provides surface gloss in varnish quality
OMEGA mounting slots and bolted connection system on the chassis
Perfect fit between body and chassis under all kinds of road conditions, increase strength, reduce tension by distributing coming force to the body
Use of robotic welding technology in OMEGA® monoblock connection saddles
Increases body strength at chassis joints, reduces tension effect, provides unity of body

TECHNICAL SPECIFICATIONS

Dimensions
Width : max. 2.550 mm.
Height : max. 3.500 mm. *
Dead Weight : 3.000 ~ 3.850 kg *

Capacity
Geometrical Volume : 12.000 ~ 25.000 l *
Number Of Compartment : 1 ~ 4 *

Tank
Tank Code : L1,5BN
Tank Class : Class 3-6-8 *
Stainless Steel * : Aluminum Alloy or Carbon steel*
Transported Materials : Tank code and the chemicals specified in accordance with the hierarchy of the ADR Section 3*
Operating Temperature : -20 ˚C +50 ˚C
Certification : ADR - Turkey TSE / Germany KBA (Tuv)

* The product type and optional equipment can vary depending on your choice.


Tank Body
  • Cylindrical cross section design conforms to EN 14025 standard ,
  • Dished heads at the front and rear, in accordance with EN 13094 design standard internal baffles fit the selected number of compartments,
  • ISO 3834 Welded manufacturing quality qualification approved,
  • Unique body structure in the tanker manufacturing sector with a smooth surface, with a minimum number of (T) joints, produced by the longest welding seam technology in the cylindrical structure, seamless, integral plates and their welded joints,
  • Using seamless high-performance robotic welding technology, welding faults on the body due to tension and human factors are minimized and secured against impact,
  • Tanks and connections are tested with the method of analysis of the end elements under maximum allowable load to increase the strength of the body and reduce the tension effect at the frame junctions. The robotic welding technology is applied to the OMEGA monoblock connection saddles,
  • The slope in the chassis design allows complete discharge of each compartment of the tank, with no liquid remaining,
  • The cleaning manhole for cleaning inside tank and its each compartment when necessary

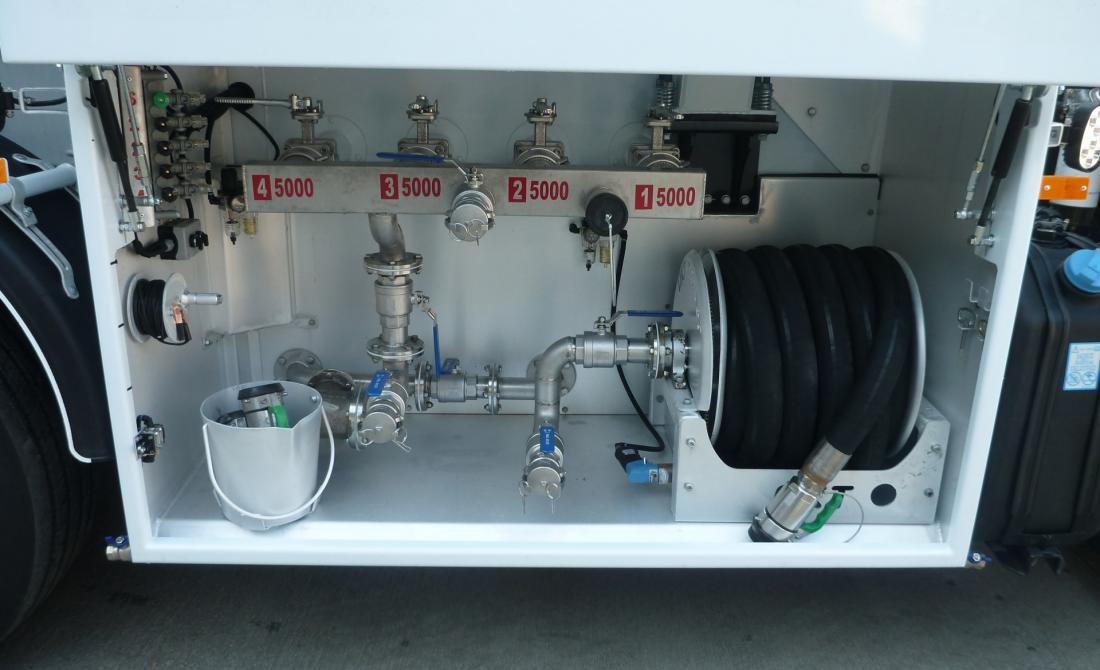

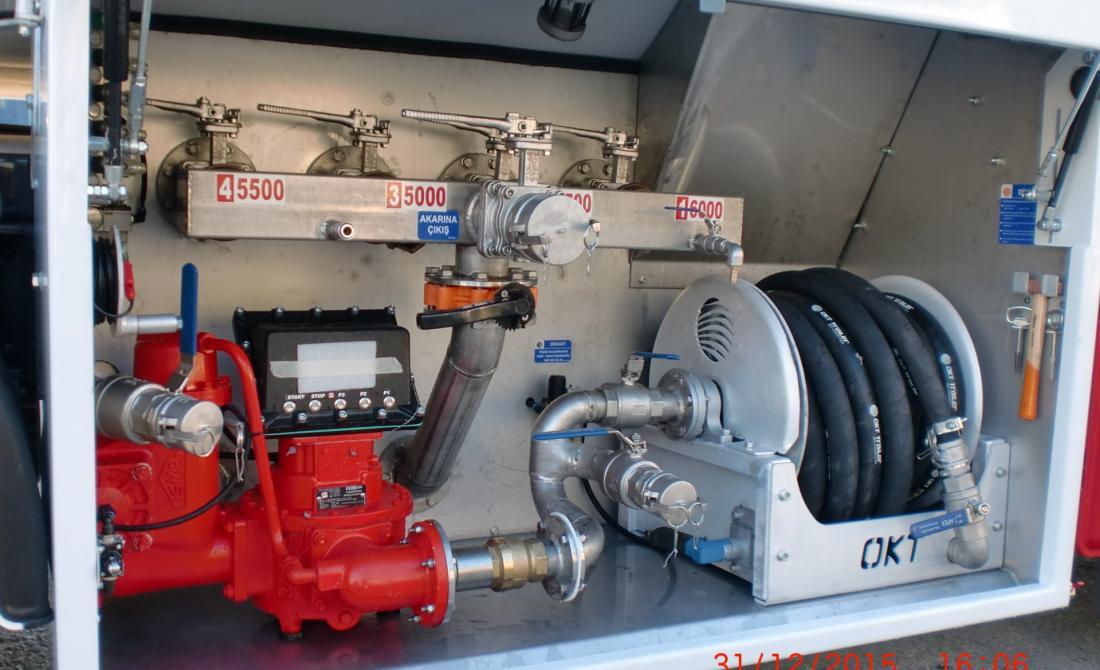

Loading/Discharge Line:
  • Loading Line:
    • Depending on the driving direction, it is filled through the right-handed couplings from the bottom or through the manhole covers or closed-circuit filling couplings from the top,
  • Discharge Line:
    • Meets EN 13094, on the right side according to the driving direction, gravity discharge through the discharge piping line extending from the bottom valves up to the couplings, at such a slope in order not to remain any liquid in the line after discharge,
    • ISO 3834 Welded production quality qualification approved discharge pipes welded to the patent padded.
Equipment:
  • It is suitable for the chemical substance content from the stainless material in accordance with the standards,
  • Filling couplings that prevent the release of the transported chemicals to the environment,
Subframe:
  • Suitable for body design, rollover safety special design subframe made of steel material that can be adapted to bolt connection according to the manufacturer's superstructure installation instructions for all types of truck chassis,
  • OMEGA® monoblock connection saddles provide a rigid structure with excellent fit to the chassis mounting slots and increase strength,
  • The spring connections used in the front subframe connections of the tank reduce the tension by distributing the force coming to the body from the road conditions,
  • Chassis construction parts are manufactured in perfect harmony with synergic welding machines by certified welders under the approval of ISO 3834 Welded manufacturing quality qualification,
Chassis Equipment:
Mudguard : : Semi-circle rigid plastic fender mounted on each wheel with aluminium clamp
Mudflaps. : Conform 109/2011/EU directive type approved anti-spray mudflaps
Lateral Protection: : Conforms ECE R73 regulation protection equipment (lateral protection etc.)
Paint
  • At least 2 coats of epoxy primer
  • "OVEN-DRYING" application on topcoat with 2 coats of acrylic paint,
  • Improved technical equipment ensures homogeneous distribution on each side of the body and surface gloss of varnish paint gloss

OKT TRAILER reserves the right to make changes in the products. Technical information is approximate and is intended for standard product application. The measurements may vary depending on the truck brand and model. The above information is not quoted. If you contact us, you can get more detailed information about the product.
