Charismatic and Attractive

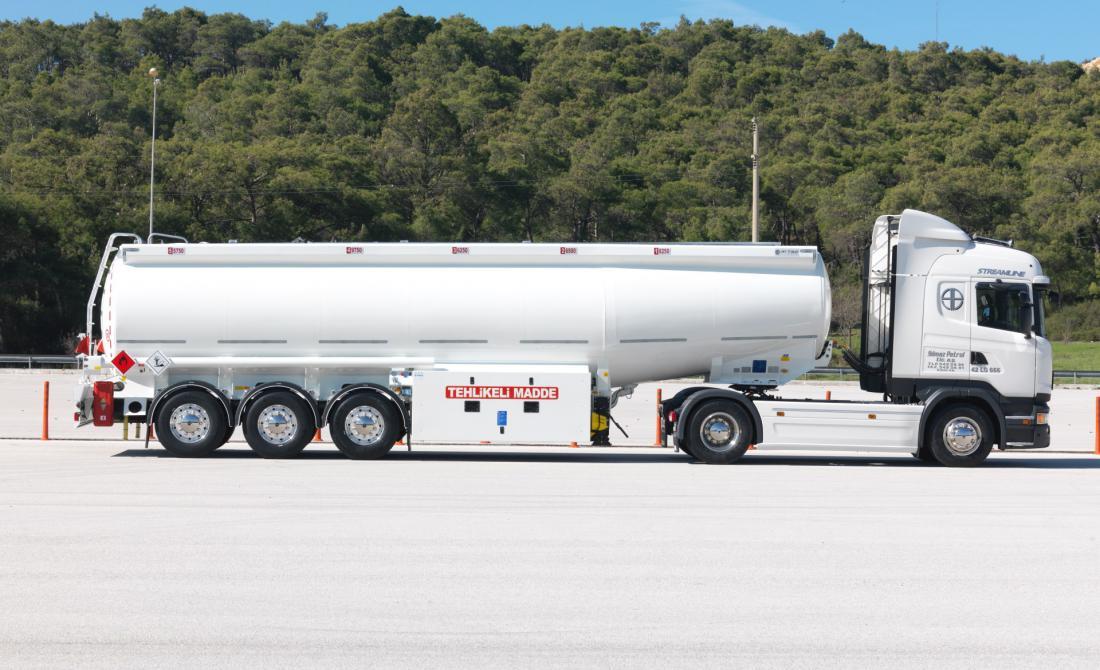

While interiorising innovative and creative solutions tailored to the specific needs of our customers as the basic principle of flexible production concept with our own know-how licenses and created technologies, Conical Tanker Semi Trailer that can be filled up from the top and bottom, carry the dangerous goods in accordance with ADR Class 3 appropriate to LGBF tank code and its hierarchy in the single or till seven compartments, discharged by gravity or pump-driven, can be made of carbon, stainless steel and aluminium alloyed materials, with the thicknesses conforms to design calculation, in conical-cylindrical cross section and large volume range according to ADR-EN 13094 regulations, the climate and road conditions of the geographical region it serves; its "Charismatic and Attractive" unique body structure challenges both the roads and years with its technologies and stand while being produced by the longest welding seam technology with minimum number of (T) joints and one-piece plates in the main body structure.

28.000 ~ 55.000 Lt.

Volume Range

1 ~ 7

Number of Compartments

-20 ~ +50 °C

Design Temperature

0,5 Bar

Design Pressure

LGBF

Tank Code


Solid Background

Make feel its users being first class, with its unchanging line from past to present, strong stand, trustworthy certification processes and gained profit.

Modular Options

Options of special designed alternative volume, number of compartments, discharge systems and equipment; sort out your job.

Show of Strength

Its style of unique body design, original stand and visual aesthetic against compeers makes it more attractive.

Safe Lightness

We do not underestimate the weight! Carry out the dynamic loads at high volume under the heavy duty conditions with safe weight optimization and without compromising of the ergonomic driving.

Performance Needs Source

Durable body structure together with superior production technology and premium equipment turns the long lifetime into profit.

OUTSTANDING FEATURES

Two sides and automatic opening handrail
Provides ease of use, safety and automatically locks the brake system
Built-in type manhole covers
Protect armatures against possible rollover and impact
Bottom discharges opened by deep drawing method
Provides full discharge of the product at the bottom of the tank

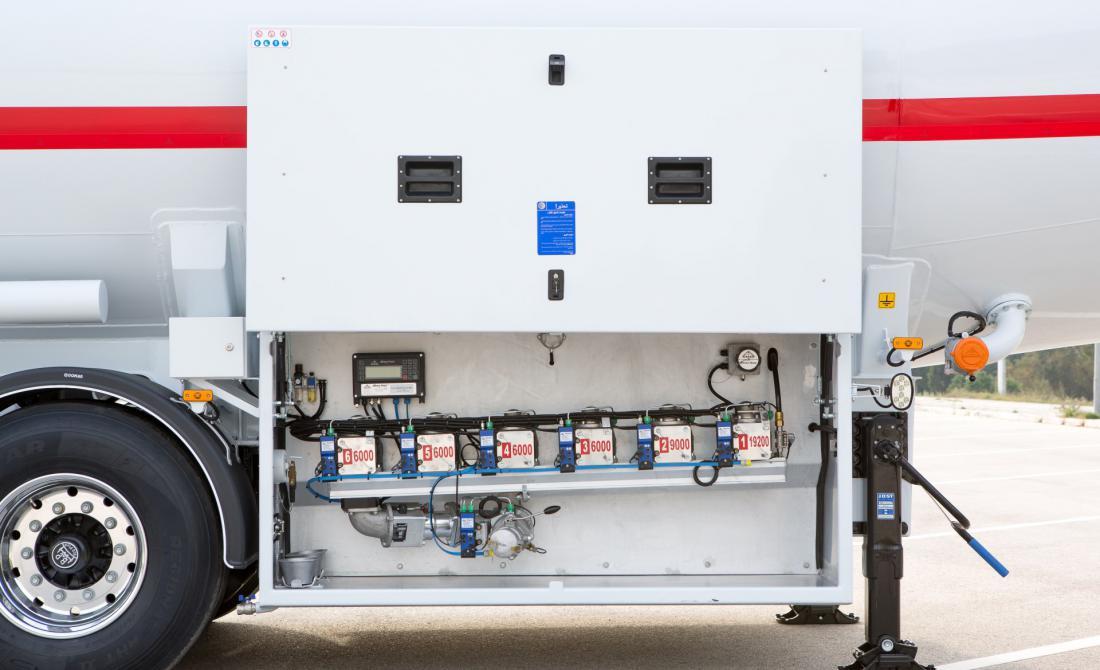

Armature discharge box’s cover (Bus type)
Provides mobility and ergonomic handling even in the narrow area
Optional Pumping Discharge System
Ergonomic handling with optimized hydromotor, piping and technical equipment provides fast and high flow rate discharge
ADR Certificated Type Approved Body by TSE / Turkey
Provides full and secure supervision by national and international up-to-date legislative compliance and expert team
The longest welding seam technology in weld joints
Safe, smooth surface and unique body structure
Use of robotic welding technology in OMEGA® monoblock connection saddles
Increases body strength at chassis joints, reduces tension effect, provides unity of body
Seamless high performance robotic welding technology
Minimizes welding faults on the body due to tension and human factors and secures against impact
OMEGA mounting slots and bolted connection system on the chassis
Perfect fit between body and chassis under all kinds of road conditions, increase strength, reduce tension by distributing coming force to the body
Jointless and one-piece plates in the body structure
The least number of (T) joints provide high strength and long life
Homogeneous paint application with advanced technical equipment
Provides surface gloss in varnish quality
Sloping chassis design
Provides complete discharge without any liquid remaining in the tank body
Germany KBA approved 2007/46/EC Vehicle Type Approval
Covers national and International up-to-date regulatory compliance and 98/91/EC chassis ADR type approval regulation
Coloured, POLYAMID air hoses
Prevents complexity on installation cables, provides serviceability

TECHNICAL SPECIFICATIONS

Dimensions
Width : max. 2.550 mm.
Height : max. 3.800 mm. *
Axle Distance 1.300 ~ 1.400 mm *
5th Wheel Height 1.250 ~ 1.350 mm *
Dead Weight : 5.250 ~ 5.800 kg *

Capacity
Geometrical Volume : 28.000 ~ 54.000 l. *
Number Of Compartment : 1 ~ 7 *

Tank
Tank Code : LGBF
Tank Class : Class 3
Construction Material Serial : Aluminium Alloy or Mild Steel or Stainless Steel *
Transported Materials : Gasoline, Diesel, Jet A-1
Operating Temperature : -20 ˚C +50 ˚C
Certification : ADR - Turkey TSE / Germany KBA (Tuv)

* The product type and optional equipment can vary depending on your choice.


Tank Body
  • Conical-Cylindrical cross section design conforms to EN 13094 standard,
  • Dished heads at the front and rear, in accordance with EN 13094 design standard internal baffles fit the selected number of compartments,
  • ISO 3834 Welded manufacturing quality qualification approved,
  • Unique body structure in the tanker manufacturing sector with a smooth surface, with a minimum number of (T) joints, produced by the longest welding seam technology in the conical structure, seamless, integral plates and their welded joints,
  • Using seamless high-performance robotic welding technology, welding faults on the body due to tension and human factors are minimized and secured against impact,
  • Tanks and connections are tested with the method of analysis of the end elements under maximum allowable load to increase the strength of the body and reduce the tension effect at the frame junctions. The robotic welding technology is applied to the OMEGA monoblock connection saddles,
  • The slope in the chassis design allows complete discharge of each compartment of the tank, with no liquid remaining,
  • Air gap safety against expansion and overflow conforms to EN 15120 standard,
Loading/Discharge Line:
  • Loading Line:
    • Depending on the driving direction, it is filled through the right-handed couplings from the bottom or the filler opening on the manhole covers from the top,
  • Discharge Line:
    • Meets EN 13094, on the right side according to the driving direction, gravity discharge through the discharge piping line extending from the bottom valves up to the couplings, at such a slope in order not to remain any liquid in the line after discharge,
    • ISO 3834 Welded production quality qualification approved discharge pipes welded to the patent padded.
Chassis:
  • Special designed suitable to body design, horizontally and vertically angled, rollover safety monoblock chassis,
  • OMEGA® monoblock connection saddles provide a rigid structure with excellent fit to the chassis mounting slots and increase strength,
  • Tension reduction gaps reduce the tension by distributing the force coming from the road conditions to the running group,
  • Chassis construction parts are manufactured with synergy welding machines by certified welders under the approval of ISO 3834 Welding quality qualification with perfect harmony,
Chassis Equipment:
King-Pin : Conforms to ECE R 55 regulation, type approved 2 "or 3.5" demountable king pin
Landing Legs : Each is double speed, 25 ton dynamic, 50 ton static load capacity trailer landing legs
Axles : Axle set with 9 or 10 tonnes each, mechanical or air suspension, drum or disc brake
Rims : 14,00 – 11,75 – 9,00 x 22,5
Tires : 425 - 385/65 R 22,5 (single) or 315/80 R 22,5 (Double)
Brake System : Conforms to ECE R 13 regulation 2S2M EBS / RSP brake system,
Electric System: : Conforms to ECE R 105 regulation ADR  approved electric system
Bumper: : Conforms to ECE R 58 regulation rear bumper
Paint
  • At least 2 coats of epoxy primer
  • "OVEN-DRYING" application on topcoat with 2 coats of acrylic paint,
  • Improved technical equipment ensures homogeneous distribution on each side of the body and surface gloss of varnish paint gloss

OKT TRAILER reserves the right to make changes in the products. Technical information is approximate and is intended for standard product application. The measurements may vary depending on the truck brand and model. The above information is not quoted. If you contact us, you can get more detailed information about the product.
